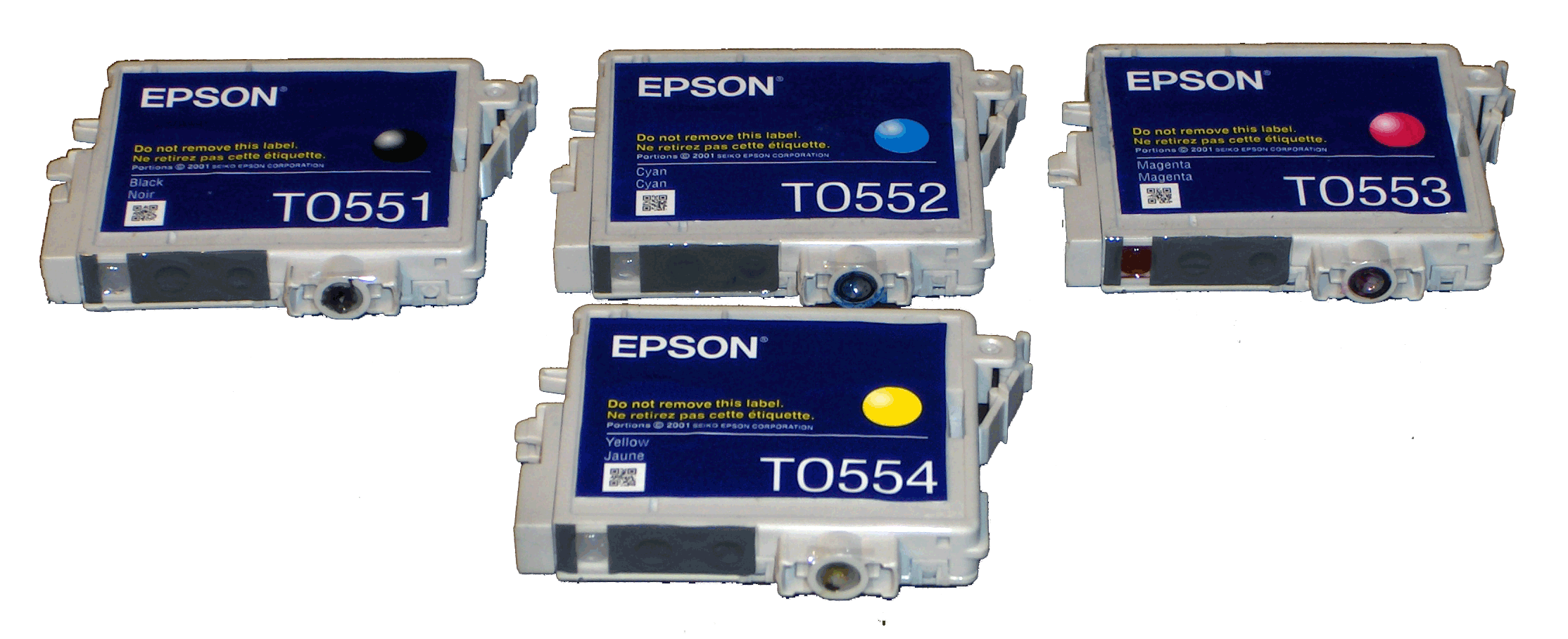

Group Eleven T55x Series
55x Group

Group Eleven Data Table

Don’t Understand the Data Table?
Click Here for an Explanation

Cartridge No

Colour

OEM Full Wt

Empty Wt from Printer

True Empty Wt

OEM Fill

Ink Delivered

OCP Ink Reference

T0551

Black

34.30g

27.30g

24.00g

10.30g

7.00g

BK 70

T0552

Cyan

34.00g

27.00g

24.00g

10.00g

7.00g

C 88

T0553

Magenta

34.00g

26.40g

24.00g

10.00g

7.60g

M 83

T0554

Yellow

34.00g

26.70g

24.00g

10.00g

7.30g

Y 74

The only difference between filling this cartridge and those of Group 1 is the shape of the cartridge.

As it has a flat back there is no need for a jig to hold it level.

Therefore follow the instructions detailed in Group 1, ignoring the instructions relating to the jig, and stand the cartridge on its back. Click the Pluglings to reach those instructions.

22nd February 2007
