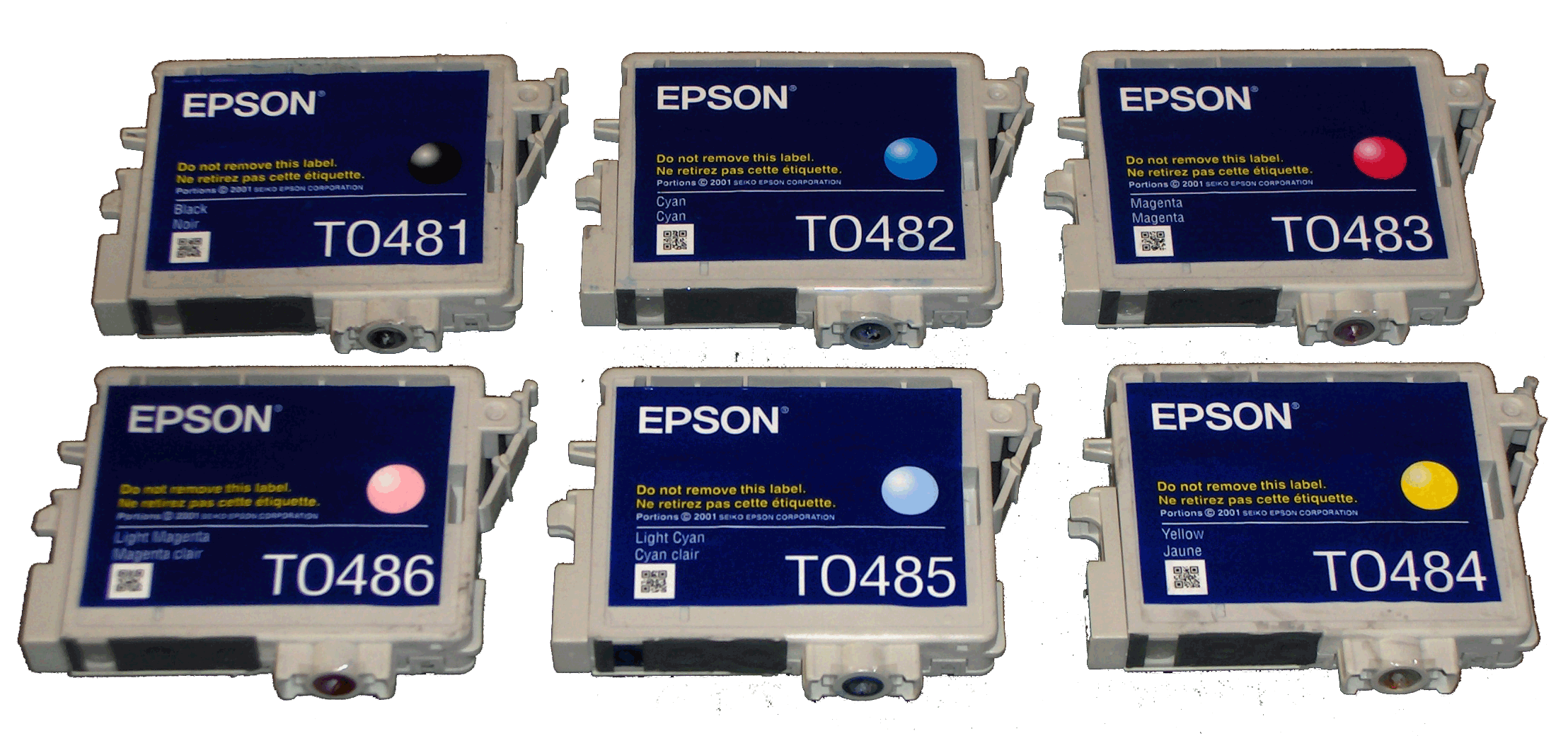

Group Eight T48x series
048x Group (8)

Group Eight Data Table

Don’t Understand the Data Table?
Click Here for an Explanation

Cartridge No

Colour

OEM Full Wt

Empty Wt from Printer

True Empty Wt

OEM Fill

Ink Delivered

OCP Ink Reference

T0481

Black

39.30g

26.95g

24.00g

15.30g

12.35g

BK 73

T0482

Cyan

39.40g

27.95g

24.00g

15.40g

11.45g

 C 76

T0483

Magenta

39.40g

28.25g

24.00g

15.40g

11.15g

M 72

T0484

Yellow

39.50g

27.55g

24.00g

15.50g

11.95g

Y 61

T0485

Lt Cyan

39.35g

27.70g

24.00g

15.35g

11.65g

CL77

T0486

Lt Magenta

39.90g

27.35g

24.00g

15.90g

12.55g

ML73

The only difference between filling this cartridge and those of Group 1 is the shape of the cartridge.

As it has a flat back there is no need for a jig to hold it level.

Therefore follow the instructions detailed in Group 1, ignoring the instructions relating to the jig, and stand the cartridge on its back. Click the Plugling to reach those instructions.

23rd February 2007
